1/2 HP-5HP	SPEED RANGE 50HZ:(120-1200 RPM) 60HZ:(150-1500 RPM)

7 1/2 HP-50HP	SPEED RANGE 50HZ:(120-1200 RPM) 60HZ:(150-1500 RPM)

60-75HP	SPEED RANGE 50HZ:(400-1200 RPM) 60HZ:(500-1500 RPM)

100-150HP	SPEED RANGE 50HZ:(400-1200 RPM) 60HZ:(500-1500 RPM)

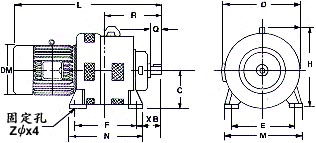

Motor		speed range		Max. torque output	Size mm
Pole	Hp	60HZ	50HZ		C	D	DM	E	F	H	L	M	N	Q	R	S	T	U	W	Z	XB
4	1/2	150~1500 RPM	120~1200 RPM	0.20	125	240	165	185	220	290	445	230	270	45	190	19	6	3	6	12	80
	1			0.40	125	240	180	185	220	290	480	230	270	45	190	19	6	3	6	12	80
	2			0.80	140	280	200	215	260	330	575	270	300	50	210	24	8	4	8	12	80
	3			1.20	170	320	230	240	300	380	640	310	370	60	250	28	8	4	8	15	100
	5			2.00	170	320	235	240	300	380	670	310	370	60	250	28	8	4	8	15	100
4	7 1/2	150~1500 RPM 500~1500	120~1200 RPM 400~1200	3.00	210	395	270	300	230	450	815	395	295	80	330	38	8	4	10	18	260
	10			4.00	210	395	280	300	230	450	845	395	295	100	330	38	8	4	10	18	260
	15			6.00	240	440	310	360	280	490	975	440	340	105	387	42	8	4	12	18	280
	20			8.10	285	525	350	415	300	590	1110	525	380	120	440	55	8	4	12	18	305
	25			10.00	285	525	380	415	300	590	1110	525	380	120	440	55	8	4	12	18	305
	30			12.00	285	525	390	415	300	590	1185	525	380	120	440	55	8	4	12	18	305
	40			16.00	340	630	410	470	400	705	1355	630	500	150	565	65	10	5	15	25	410
	50			20.00	340	630	440	470	400	705	1370	630	500	150	565	65	10	5	15	25	410

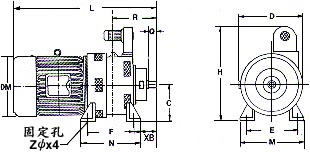

Pole	Hp	60Hz	50Hz	Max. torque output	C	D	DM	E	F	H	L	M	N	Q	R	S	T	U	W	Z	XB
4	60	500~1500	400~1200	24.00	355	680	442	560	680	740	1450	730	780	180	630	75	13	7.5	20	25	290
4	75	500~1500	400~1200	30.00	355	680	442	560	680	740	1540	730	780	180	630	75	13	7.5	20	25	290
Pole	Hp	60Hz	50Hz	Max. torque output	C	D	DM	E	F	H	L	M	N	Q	R	S	T	U	W	Z	XB
4	100	500~1500	400~1200	40.00	400	725	485	570	700	1130	1750	730	800	180	646	75	13	7.5	20	32	285
4	125	500~1500	400~1200	50.00	400	725	485	570	700	1130	1750	730	800	180	646	75	13	7.5	20	32	285
4	150	500~1500	400~1200	60.00	420	820	550	600	900	1350	2165	820	1050	180	745	85	16	8	24	32	335
